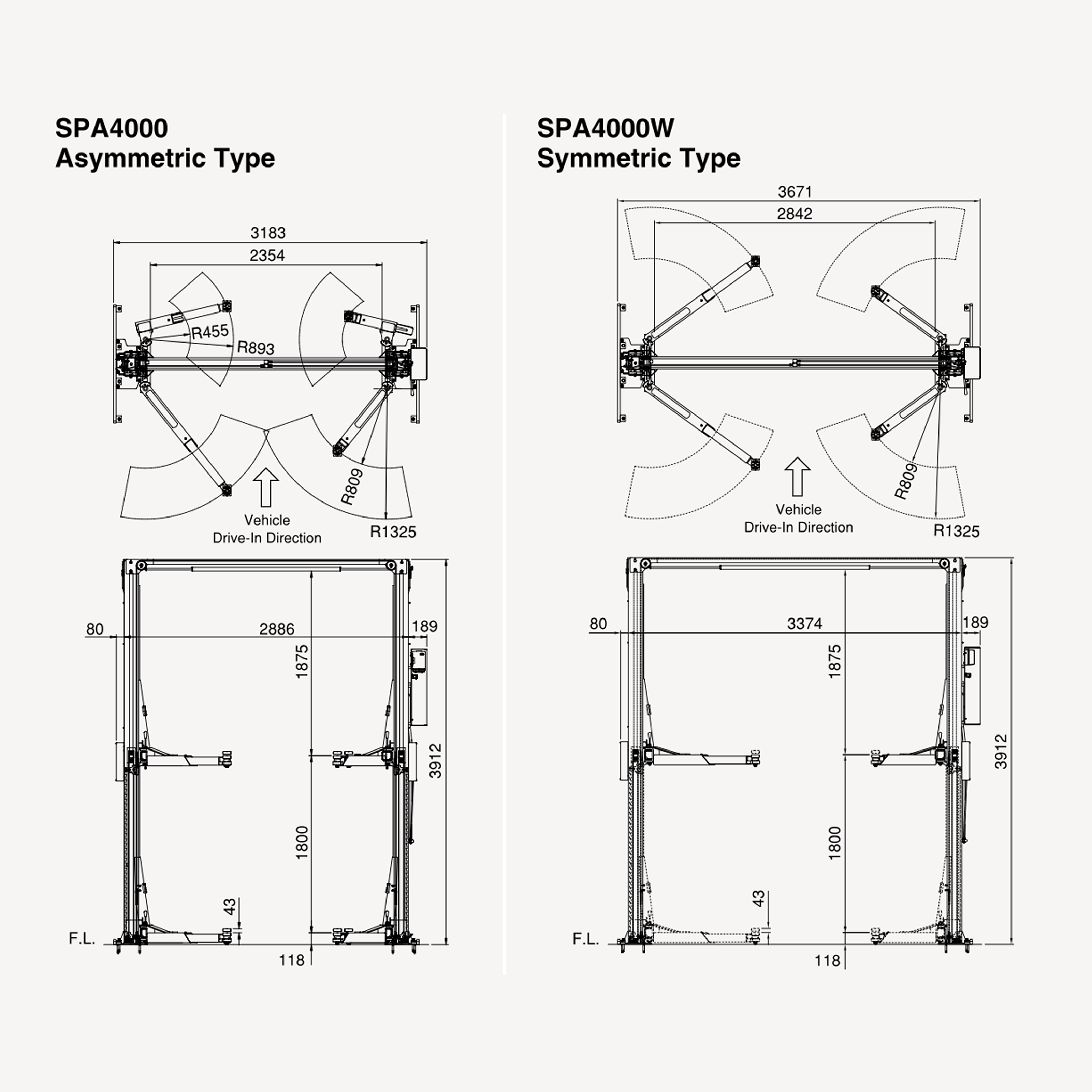

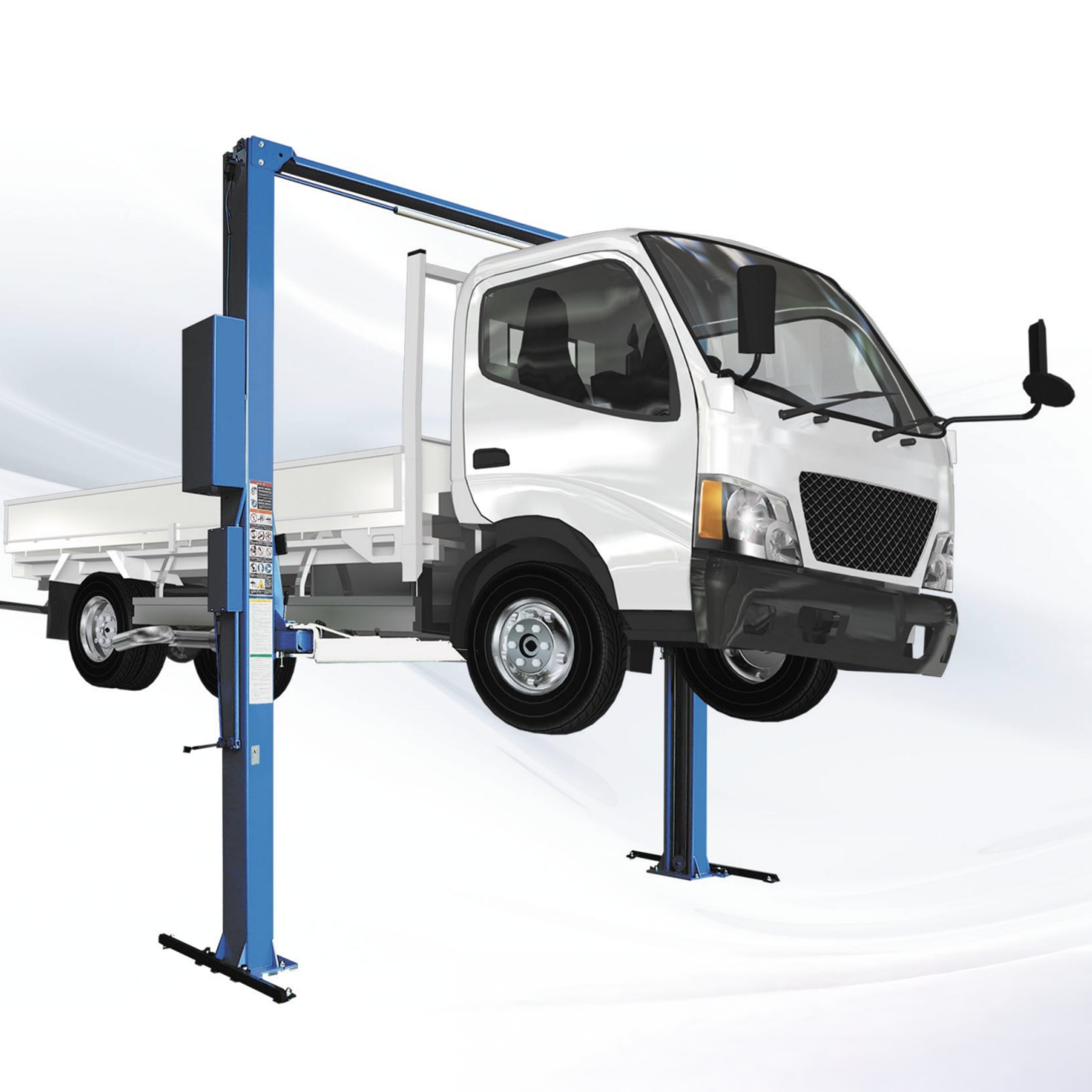

SPA4000 Asymmetric Type
Designed for space-conscious workshops, the SPA4000 uses shorter front arms to create a narrower overall footprint, allowing for easier vehicle access in tighter bays. Ideal for front-heavy vehicles like sedans and compact cars, this asymmetric configuration improves operator access to doors and cabin space during servicing.
From compact cars to heavy-duty vehicles, Bishamon delivers the reliability your workshop demands

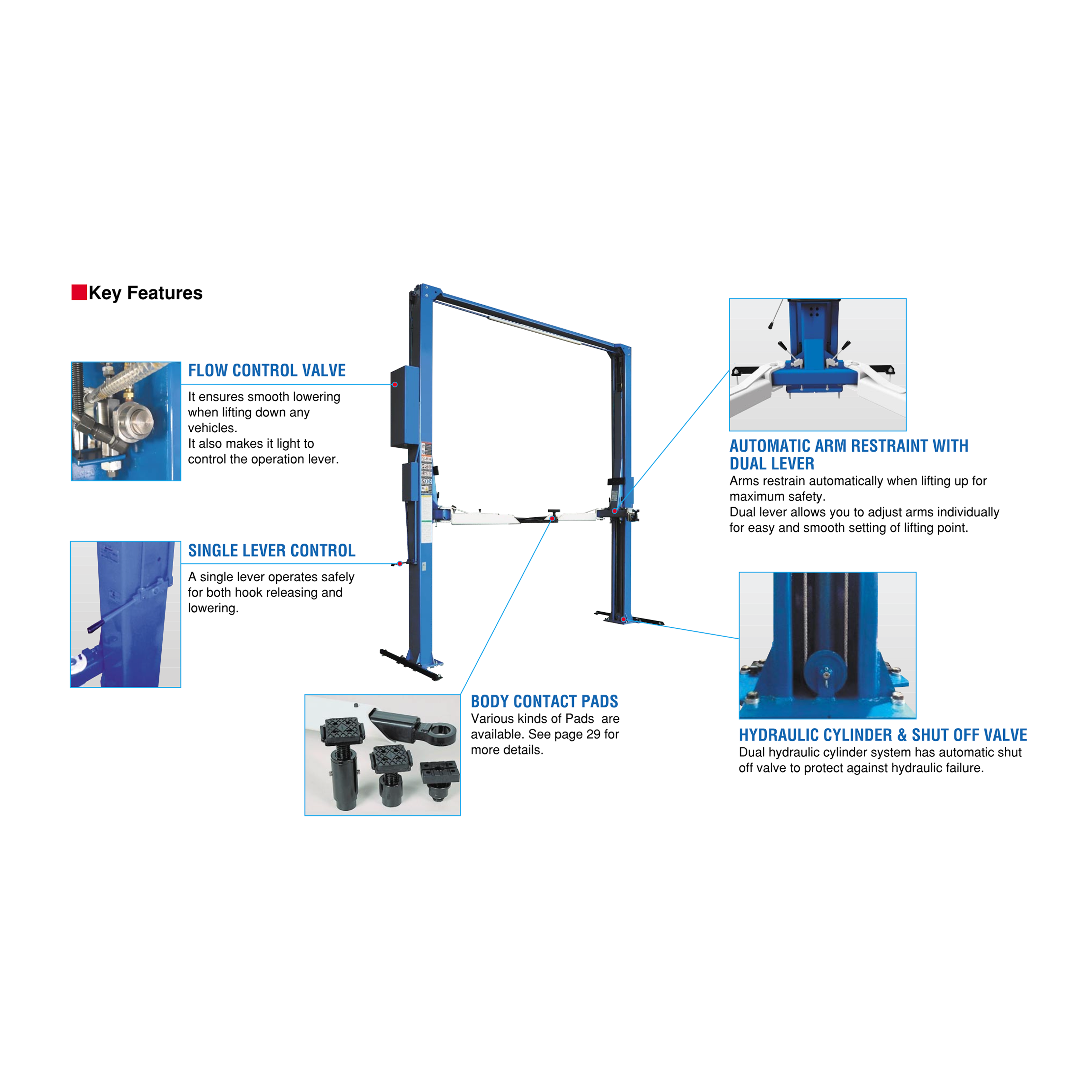

Ensures smooth vehicle lowering and makes lever operation lighter.
A single lever safely operates both hook release and lowering functions.
Automatically locks arms when lifted; dual levers allow precise, individual arm adjustments.
A dual hydraulic system with automatic shut-off for protection against failure.
Compatible with a variety of pad types for different vehicle underbodies.
SPA SERIES
Engineered to lift with balance and safety—Bishamon SPA4000 Series delivers reliable performance for every vehicle, every workshop.
View DatasheetAsymmetrical
Symmetrical
4,000 kg
4,000 kg
1,800 mm
1,800 mm
Lever
Lever
3-phase
3-phase
1.5 kW, 4P, 10 min rating
1.5 kW, 4P, 10 min rating
64 sec
64 sec
77 sec
77 sec
8.5L (ISO VG32)
8.5L (ISO VG32)
