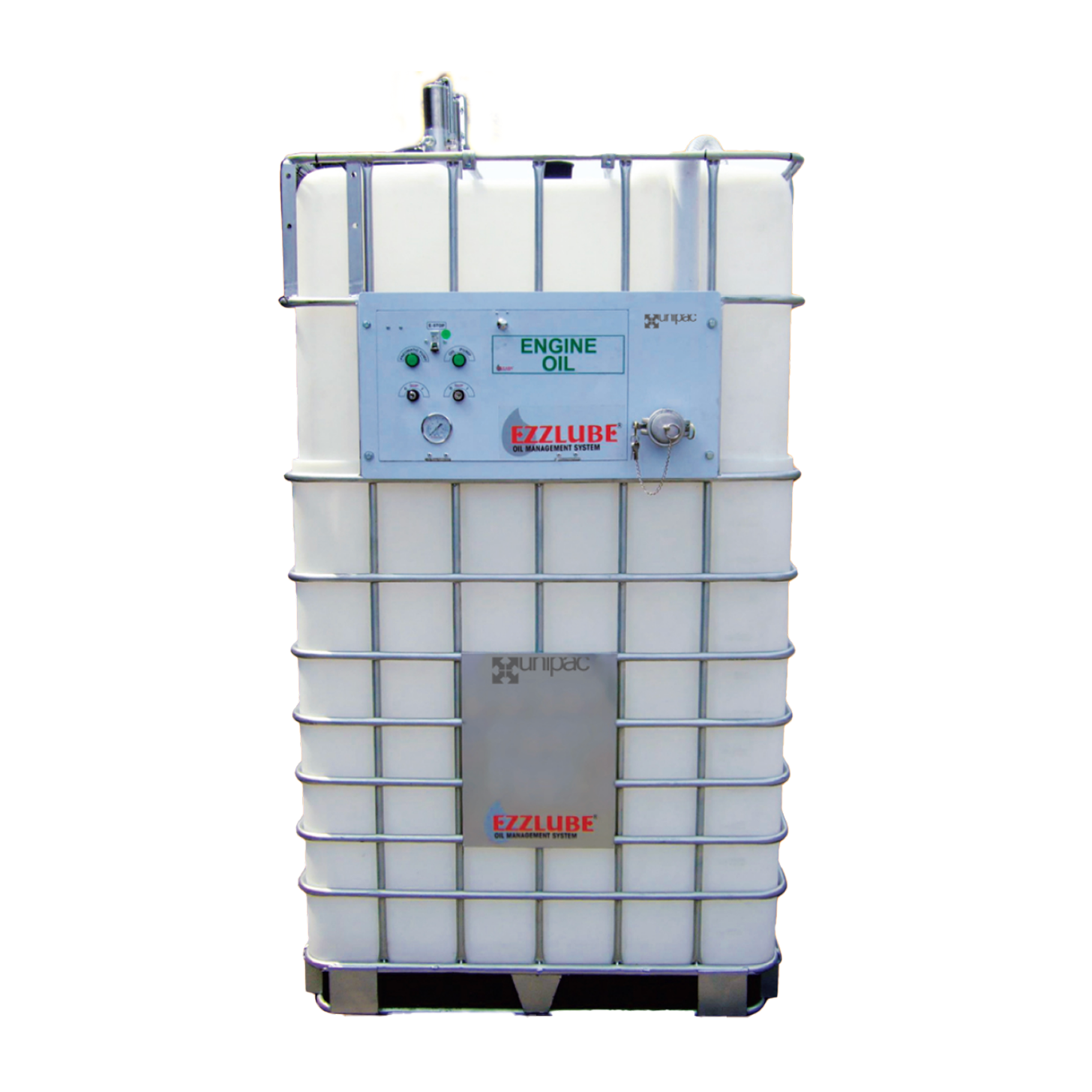

Waste Oil EZZLube Bulk Oil Management System
The EzzLube Bulk Oil Tank is a cost-effective and efficient solution for storing and dispensing large volumes of oil. This product is ideal for safely collecting and storing used oil with its sealed, double-wall design and pneumatic transfer system, EZZLube provides a tidy, leak-proof solution for environmentally responsible waste management.
EZZLube Bulk Oil Management
Efficient, Enclosed Solutions for New and Waste Oil Handling

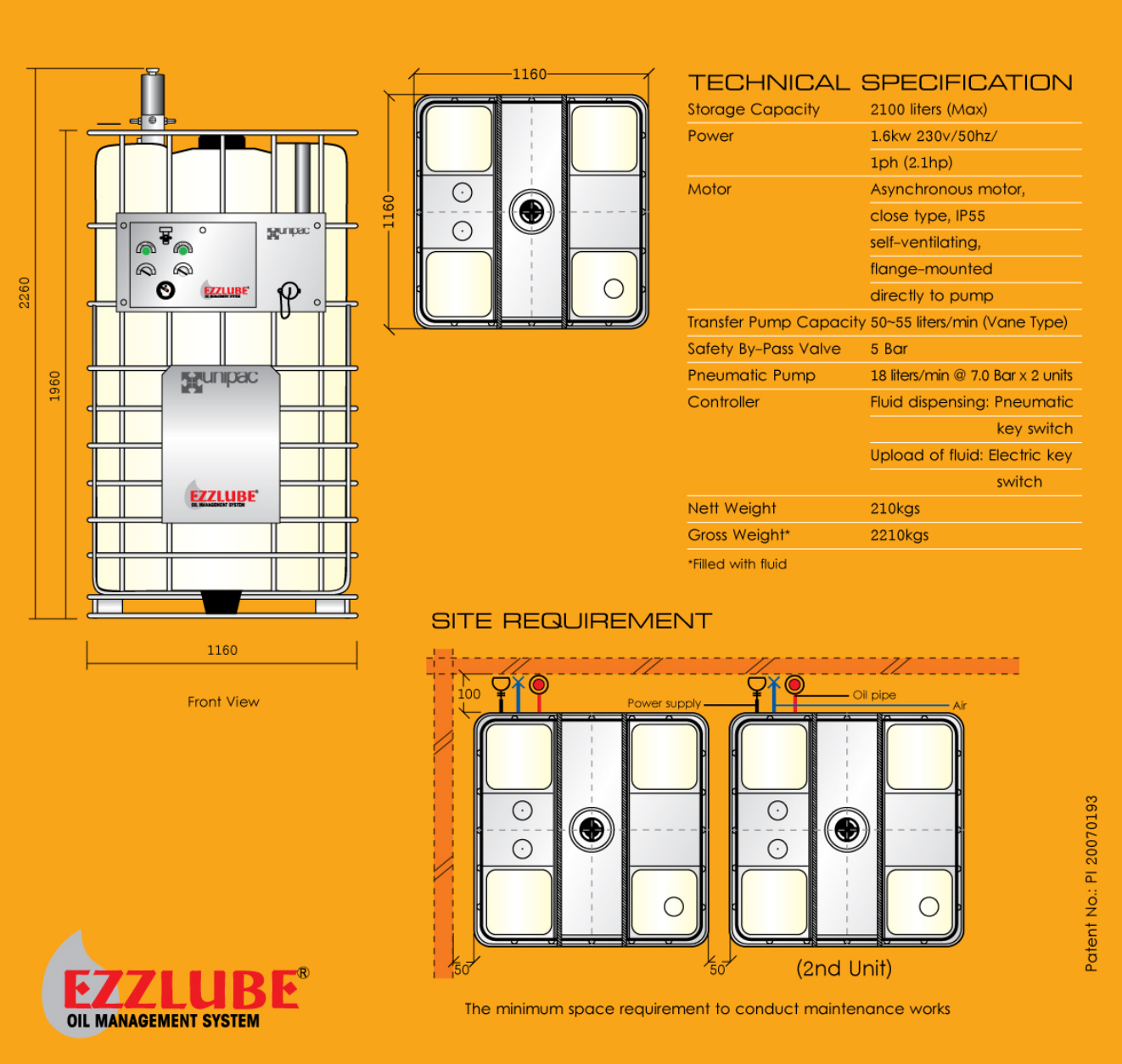

View DatasheetStorage & controlled dispensing of fresh engine oil
Collection and storage of used/waste oil
2100 liters (max)
2100 liters (max)
1.6kW, 230V, 50Hz (1ph, 2.1 HP)
1.6kW, 230V, 50Hz (1ph, 2.1 HP)
Asynchronous, IP55, flange-mounted
Asynchronous, IP55, flange-mounted
50–55 L/min (Vane type)
50–55 L/min (Vane type)
18 L/min @ 7.0 Bar × 2 units
18 L/min @ 7.0 Bar × 2 units

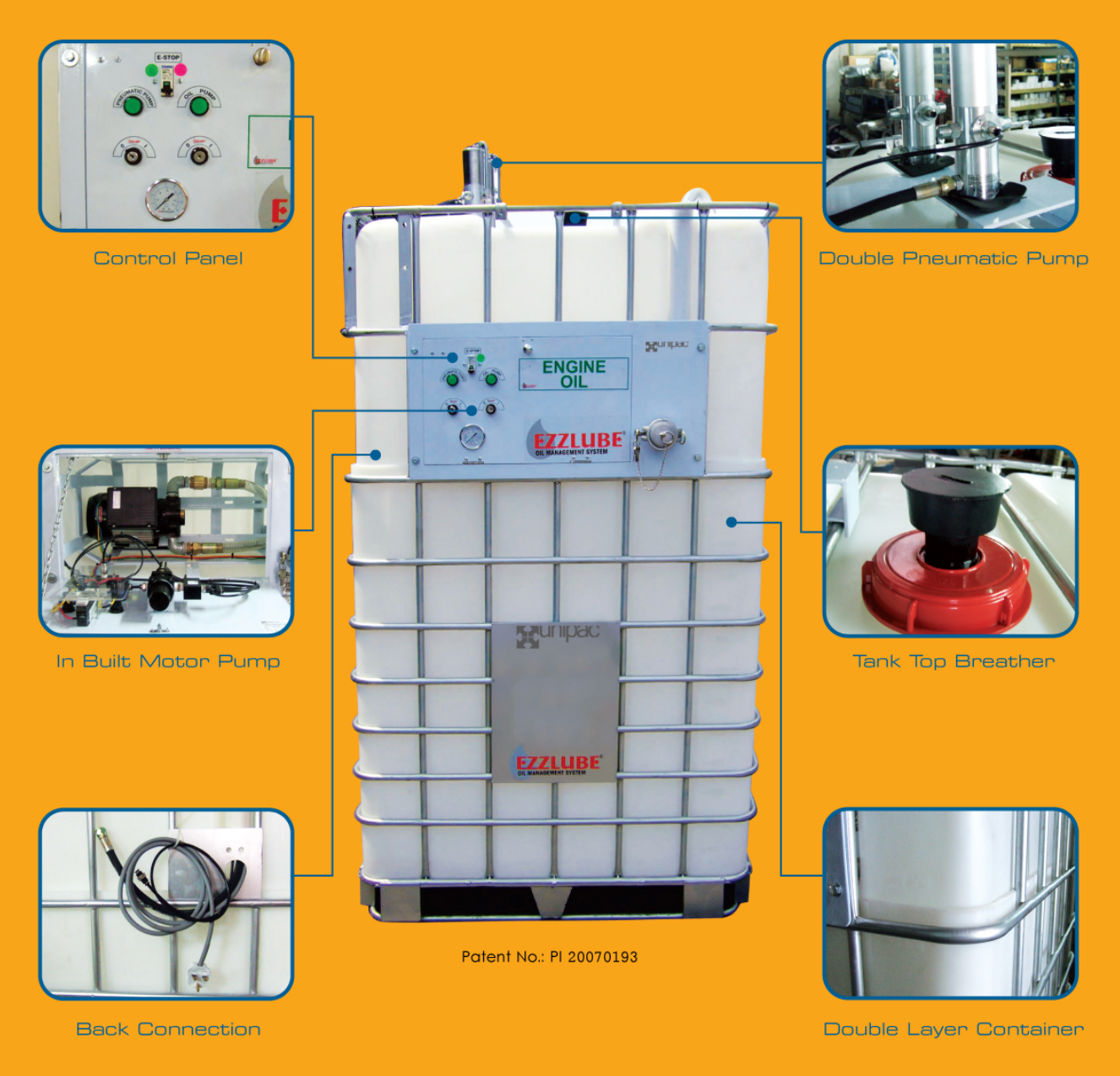

Pneumatic dispensing, electric key switch
Pneumatic uploading, electric key switch
Emergency stop button, 5 Bar bypass valve
Emergency stop button, 5 Bar bypass valve
Double-layer container with breather
Double-layer container with breather
Front control panel with indicators
Front control panel with indicators
210 kg / 2210 kg
210 kg / 2210 kg
100 mm (sides), 500 mm (front/back)
100 mm (sides), 500 mm (front/back)
