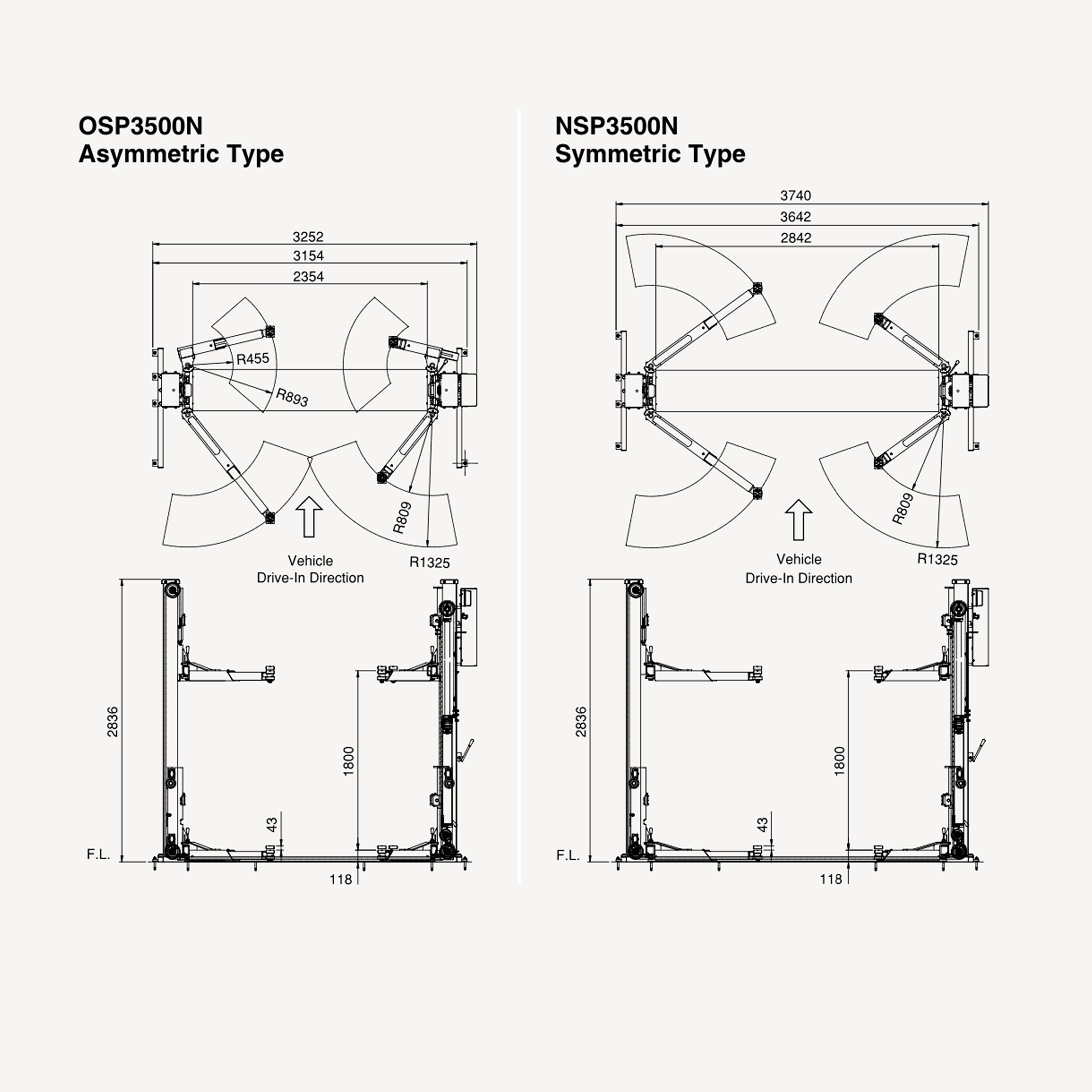

NSP3500 Symmetric Type
The NSP3500N uses long arms on all sides, placing the vehicle’s center of gravity between the posts, which offers optimal stability. This configuration allows vehicle setup from both directions and is better suited for evenly balanced vehicles, such as vans, SUVs, and light trucks.
From compact cars to heavy-duty vehicles, Bishamon delivers the reliability your workshop demands

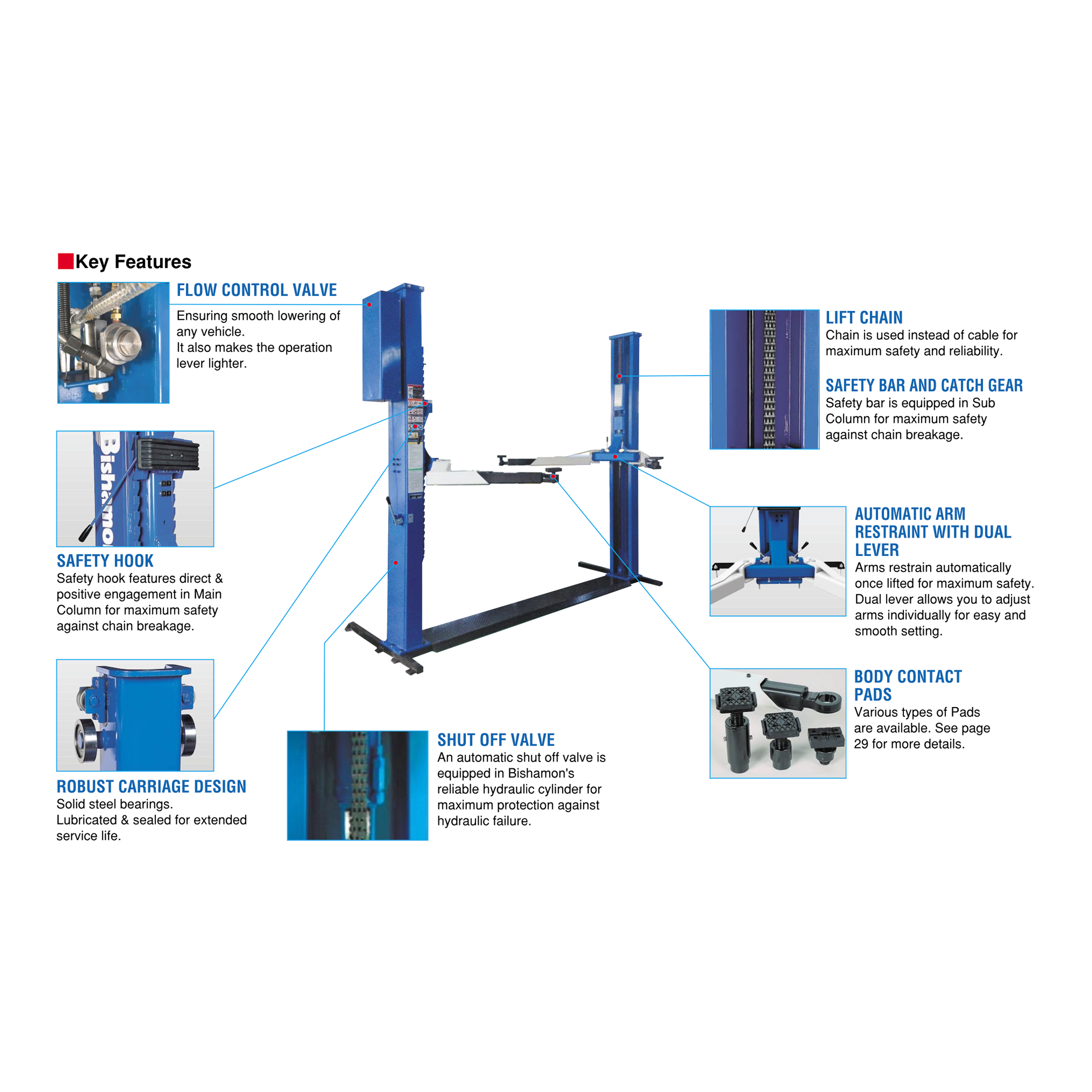

Smooth vehicle lowering and lighter lever operation.
Strong, reliable chain instead of cable for enhanced durability and safety.
Built-in in sub column to prevent chain breakage.
Direct and secure engagement in main column for extra protection.
Arms lock automatically when lifted; dual lever allows individual adjustment for flexibility.
Solid steel bearings, lubricated and sealed for long-term use.
Automatic shut-off protects against hydraulic failure.
OSP·NSP SERIES
Asymmetric or symmetric, Bishamon lifts deliver precision, safety, and performance.
View DatasheetAsymmetrical
Symmetrical
3,500 kg
3,500 kg
1,800 mm
1,800 mm
Lever
Lever
3-phase
3-phase
1.5 kW, 4P, 10 min rating
1.5 kW, 4P, 10 min rating
60Hz=59 sec
50Hz=70 sec
60Hz=59 sec
50Hz=70 sec
8L (ISO VG32)
8L (ISO VG32)
