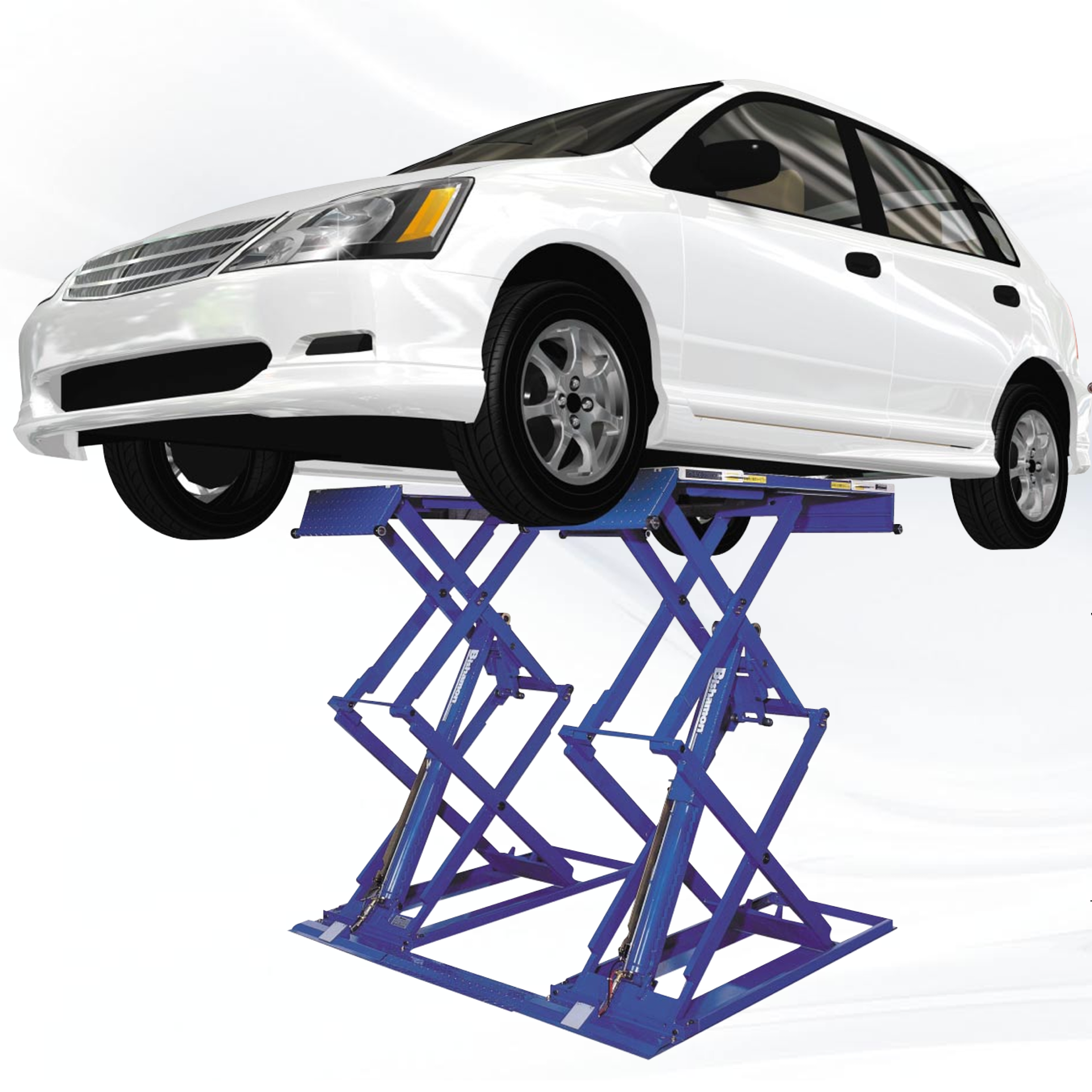

SCL 3000AP Pit Installation Model
The SCL3000AP shares the same lifting performance but is optimized for pit installation, allowing a truly flush floor finish. Ideal for shops that want a clean, open workspace when the lift is not in use, it offers the same reliability and compact performance in a recessed setup.
From compact cars to heavy-duty vehicles, Bishamon delivers the reliability your workshop demands
Minimum height of only 105 mm allows easy vehicle drive-on and floor-level pit installation.
Adjustable platform width ensures compatibility with various vehicle sizes.
Synchro cylinder system ensures safe, smooth descent even under no load.
Hydraulic cylinders synchronize lifts for level, stable raising.
External hydraulic unit allows better heat management and easier maintenance.
SCL SERIES
Ultra-low design, ultra-reliable lift—Bishamon Tortoise G brings precision and flexibility to compact spaces
View DatasheetAbove Ground
Pit Installation
Separated
Separated
3,000 kg
3,000 kg
1,800 mm
1,800 mm
Cable remote control switch
Cable remote control switch
3-phase
3-phase
1.5 kW, 4P, 10 min rating
1.5 kW, 4P, 10 min rating
48 sec
48 sec
58 sec
58 sec
28 sec
28 sec
15L (ISO VG32)
15L (ISO VG32)
0.5–1.0 MPa
0.5–1.0 MPa
